Thermal Transfer Overprinter - Linx TT 500


Low total cost of ownership

Operates without compressed air reducing installation and operating costs while maintaining consistent print quality

Increased range of printers and ribbons to better meet your application and production line printing needs

Optimise ribbon usage with bi-directional stepper motors delivering more prints per ribbon

Increased uptime

Quick and easy ribbon changewith a lightweight, simple, push button cassette system

Minimal ribbon change intervals and increased production line efficiency with ribbon lengths up to 700m

Optimal number of user maintainable parts that are easy to replace

Ease of use

Easy to set and maintain print quality with electronic pressure control

Easy ribbon replacements with a simple cassette system designed to minimise errors

Easy printer operation delivered by a responsive, intuitive graphic user interface


  Intermittent and continuous mode in the same printer

  Printhead characteristics: 32mm, 200dpi, 8 dots/mm

  Print area - intermittent motion mode: Up to 32mm (W) x 47mm (L)

  Print area - continuous motion mode: Up to 32mm (W) x 100mm (L)

  Maximum throughput*: 150 prints per minute

  Ribbon width: 20mm - 33mm

  Maximum ribbon length: 700m

  Print speed* - intermittent motion mode: 50mm/sec - 300mm/sec

  Print speed* - continuous motion mode: 40mm/sec - 500mm/sec

  Cable length between printer and power supply unit: 3 metres (5m option)

General Features

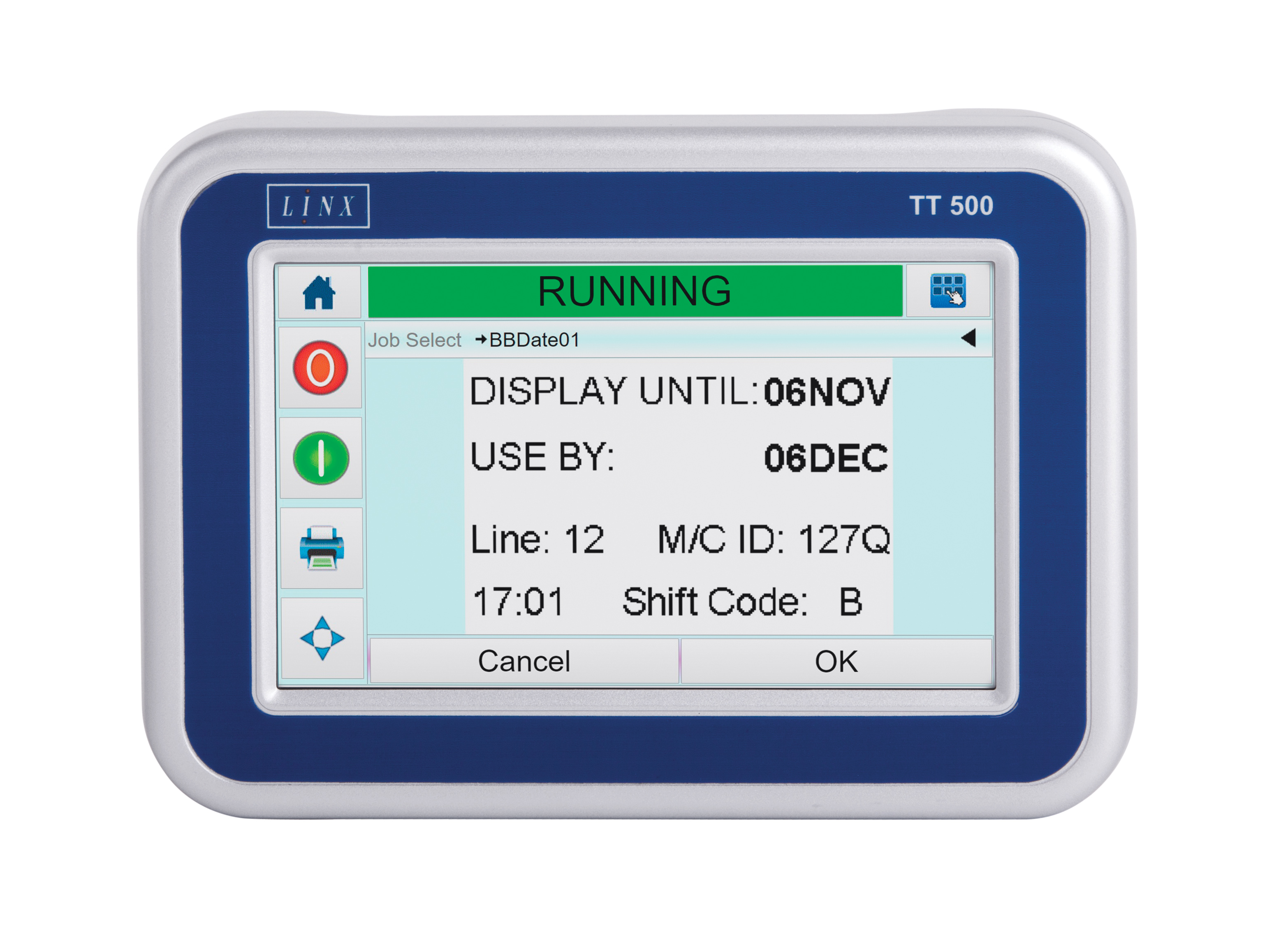

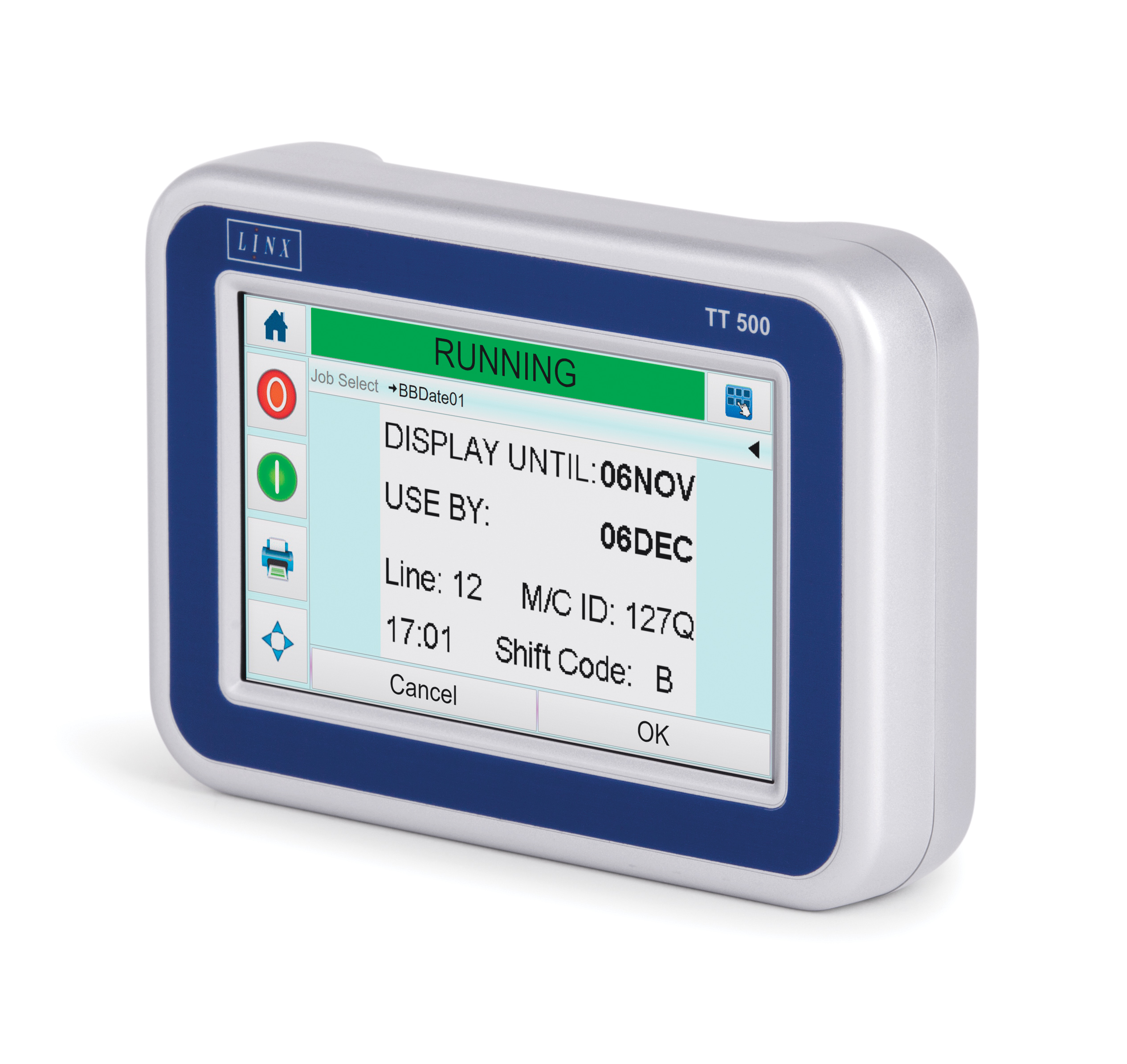

  5.0” WVGA (800x480) LCD touch screen graphic user interface including WYSIWYG print preview

  Clutchless bi-directional ribbon drive including ribbon consumption indicator and ribbon break/end of reel detection

  Lightweight, simple, push button cassette design

  On-board diagnostics including printhead health

  3 levels of password protection

  Multiple operator languages

 *Print speeds and throughput are substrate, application and set-up dependent

Programming And Printing Features

  Linx CLARiSOFT® message design software

  Full downloadable font support for Windows® TrueType® (including multiple languages and Unicode support)

  Barcodes EAN-8, EAN-13, UPC-A, UPC-E and QR

  Fixed/variable text and numeric fields

  User enterable text and numeric fields

  Auto incrementing/decrementing text, counters and barcodes

  Basic shape drawing

  Flexible date/time formats

  Auto best before date calculation

  Formats for shift coding

  Multiple graphic formats supported - any size up to maximum print area

  Link fields to databases

  Field orientation 0°, 90°, 180°, 270°

  Mirror image, image rotation, and inverse printing

  Real time clock functions

  User configurable drop down lists fields

  Radial ribbon save functionality
