Thermal Transfer Overprinter - Linx TT 750
Low total cost of ownership
Operates without compressed air reducing installation and operating costs while maintaining consistent print quality
Increased range of printers and ribbons to better meet your application and production line printing needs
Optimise ribbon usage with a choice of 3 ribbon saving modes
Increased uptime
Quick and easy ribbon change with a lightweight, simple, push button cassette system
Minimal ribbon change intervals and increased production line efficiency with ribbon lengths up to 1,200m
Optimal number of user maintainable parts that are easy to replace
Ease of use
Easy to set and maintain print quality with electronic pressure control
Easy ribbon replacements with a simple cassette system designed to minimise errors
Easy printer operation delivered by a responsive, intuitive graphic user interface
Performance
Intermittent and continuous mode in the same printer
Printhead characteristics: 32mm, 300dpi, 12 dots/mm; 53mm, 300dpi, 12 dots/mm
Print area - intermittent motion mode: Up to 32mm (W) x 75mm (L) (32mm) Up to 53mm (W) x 75mm (L) (53mm)
Print area - continuous motion mode: Up to 32mm (W) x 200mm (L) (32mm) Up to 53mm (W) x 200mm (L) (53mm)
Maximum throughput*: 250 prints per minute
Ribbon width: 20mm - 35mm (32mm) 20mm - 55mm (53mm)
Maximum ribbon length: Up to 1200m
Ribbon gap between messages: 0.5mm nominal
Print speed* - intermittent motion mode: 40mm/sec - 750mm/sec
Print speed* - continuous motion mode: 40mm/sec - 750mm/sec
Cable length between printer and power supply unit: 3 metres (5m option)
General Features

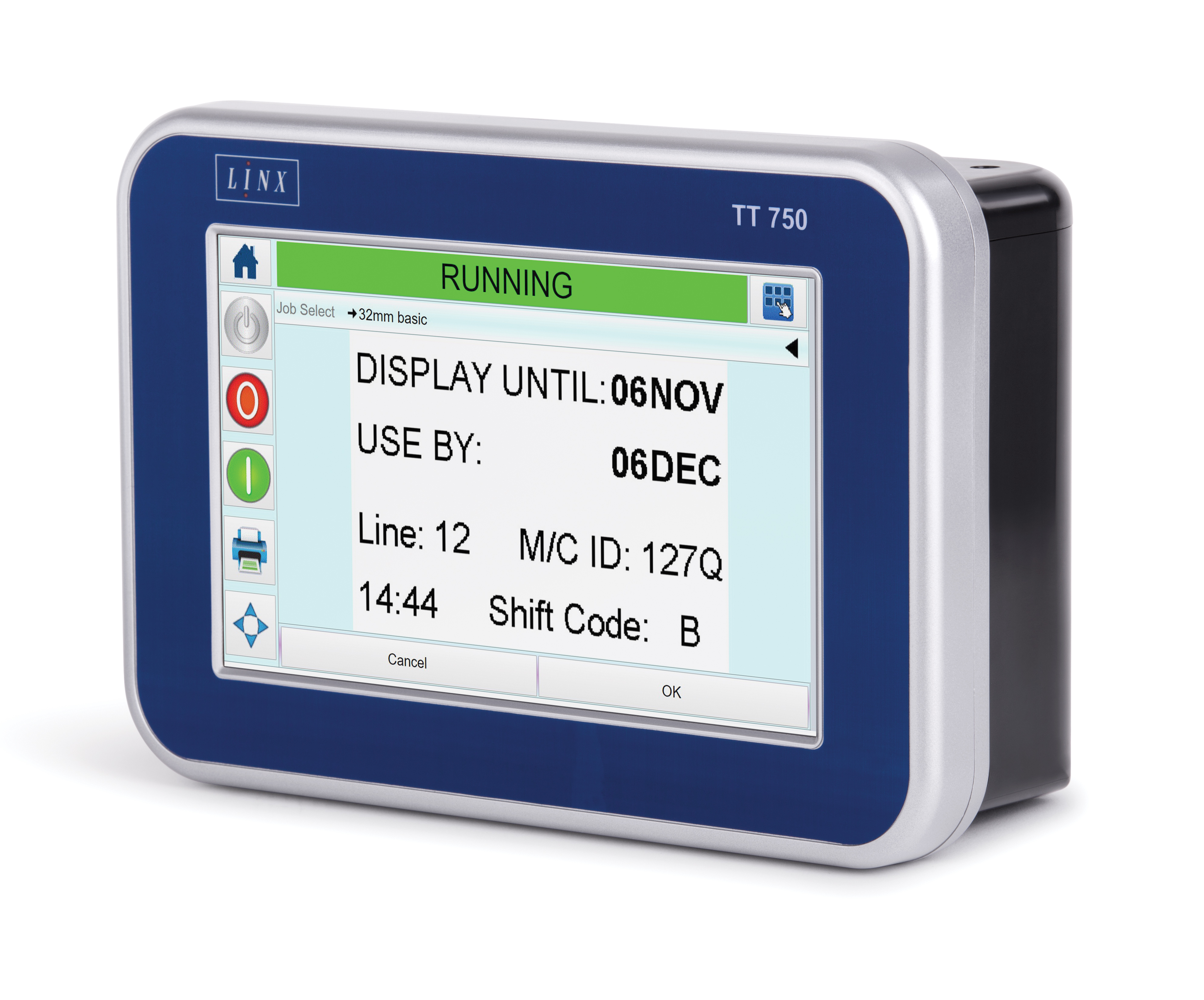

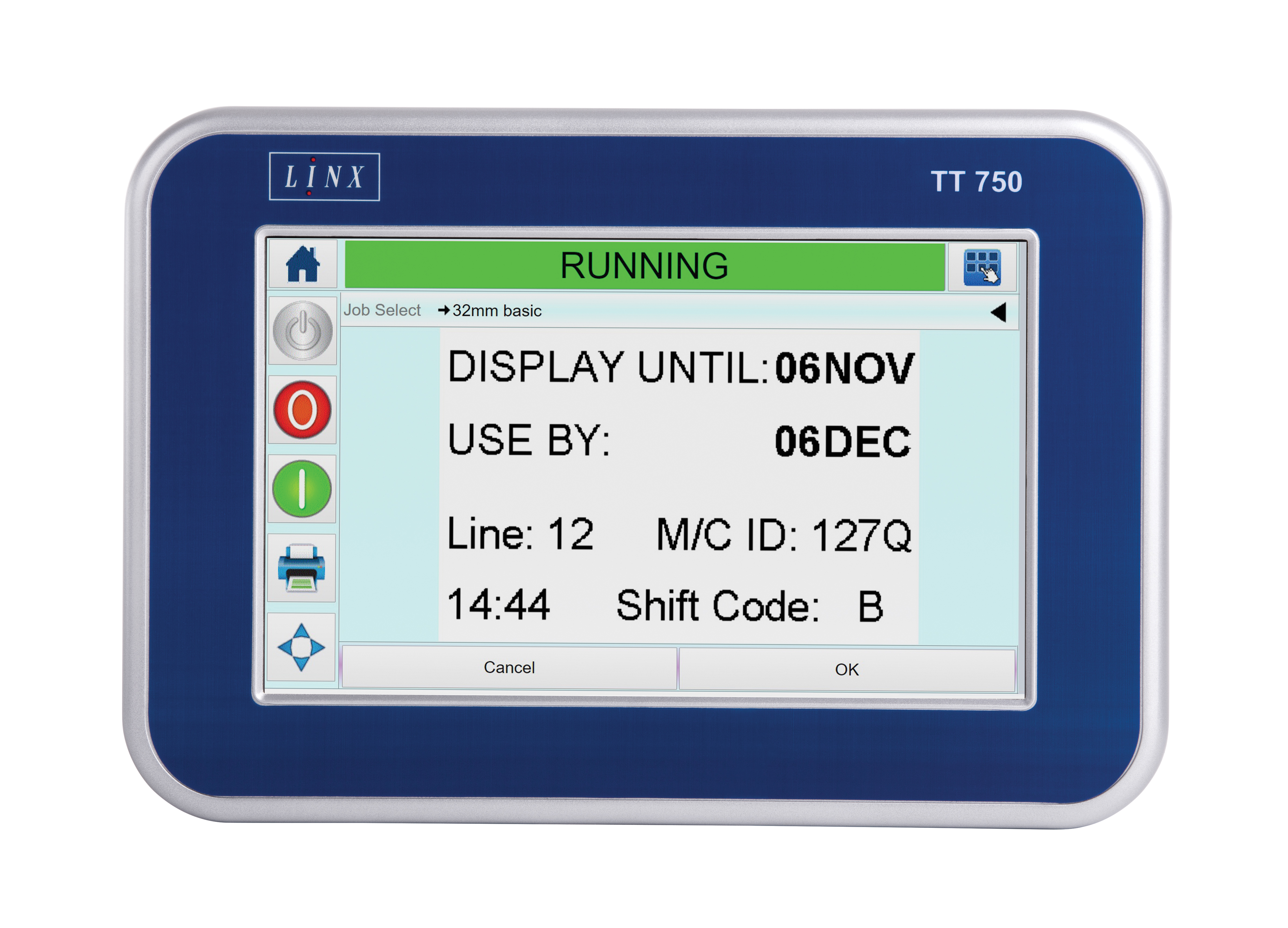

8.0” WVGA (800x480) LCD touch screen graphic user interface including WYSIWYG print preview
Clutchless bi-directional ribbon drive including ribbon consumption indicator and ribbon break/end of reel detection
Lightweight, simple, push button cassette design
On-board diagnostics including printhead health
3 levels of password protection
Multiple operator languages
*Print speeds and throughput are substrate, application and set-up dependent
Programming And Printing Features
Linx CLARiSOFT® message design software
Full downloadable font support for Windows® TrueType® (including multiple languages and Unicode support)
Barcodes EAN-8, EAN-13, UPC-A, UPC-E, Code 39, EAN128, Code 128, ITF, PDF417, Data Matrix, QR, RSS (including 2D composite codes)
Fixed/variable/merged text and numeric fields
User enterable text and numeric fields
Auto incrementing/decrementing text, counters and barcodes
Basic shape drawing
Flexible date/time formats
Auto best before date calculation
Formats for shift coding
Multiple graphic formats supported - any size up to maximum print area
Link fields to databases
Field orientation 0°, 90°, 180°, 270°
Mirror image, image rotation, and inverse printing
Real time clock functions
User configurable drop down lists fields
Radial, intermittent stripes and interleaved images ribbon save functionality
