Laser Printer
( CSL 30)
Detachable marking head and connectors for easy installation
Flexible configurations to meet your exact coding requirements
Powerful processor for faster coding
Over 20,000 different configurations for economical laser use
Service intervals typically twice that of the industry standard
Easy line integration - detachable marking head with quick disconnect cables
No expensive factory air for cooling
Multiple beam delivery options allow for coding in any orientation

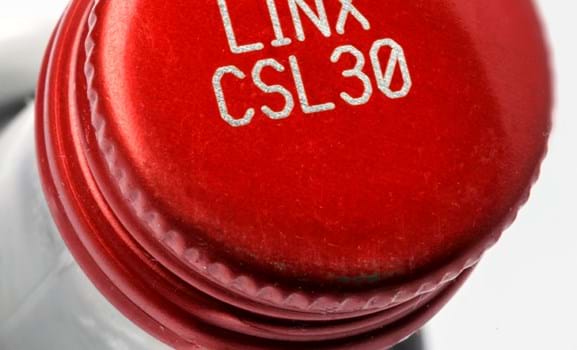

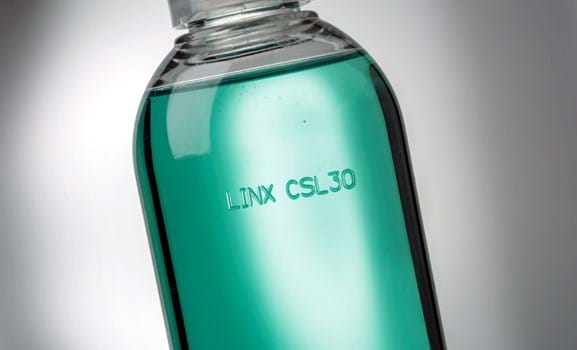

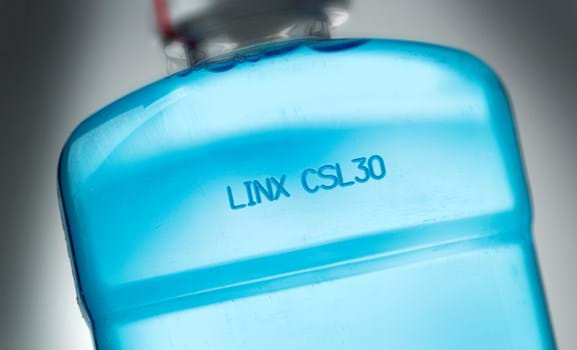

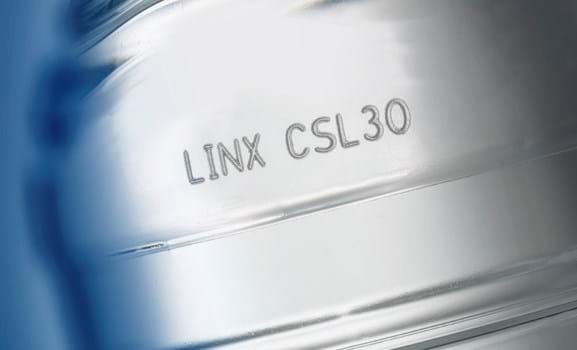

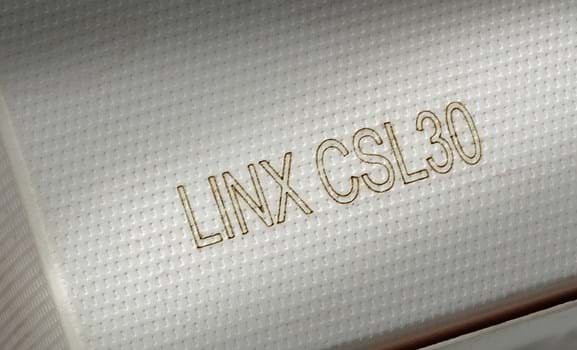

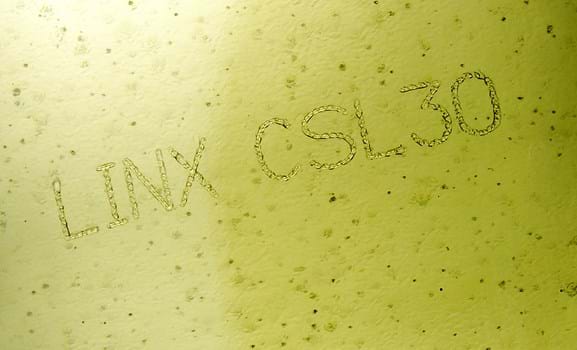

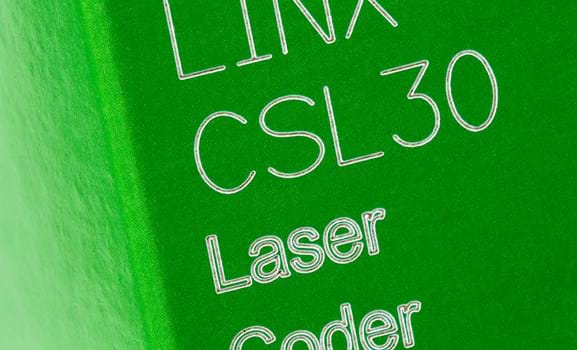

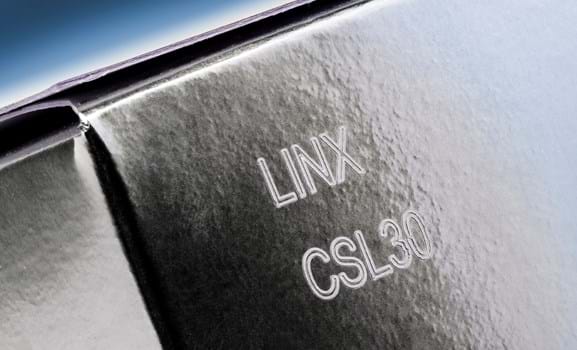

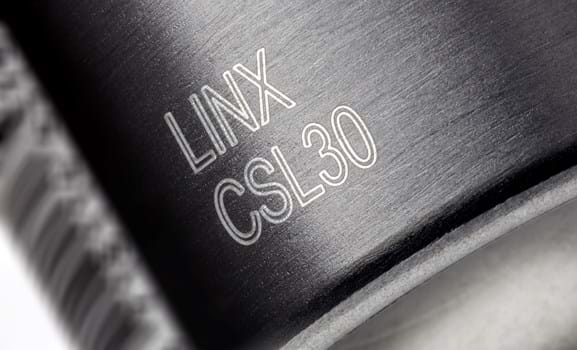

Coding and marking capability
• CO2 scribing laser coder
• Line speed - up to 900 m/min (code and substrate
dependent)
• Maximum laser output power at lens - 30W
• Lens and head options (range):
• Spot Size 0.114 mm – 1.6 mm
• Marking Field 29 mm x 36 mm to 440 mm x 601
mm (wide web application)
• Mark distance 67 mm – 576 mm
• Number of lines of text - only limited by character size and marking field size
• Character height - up to marking field size
• Print rotation – 0-360°
• Marking head rotation – 0-360°
• Laser tube wavelengths - 10.6 µm, 9.3 µm, or 10.2 µm
• Down (90°) or Straight (0°) Shooter
• IP rating - IP54 as standard, IP65 option
• Large volume gas tube can last in excess of 45,000* hours
